Eigen::SparseCompressedBase< Derived > Class Template Reference

Common base class for sparse [compressed]-{row|column}-storage format. More...

#include <SparseCompressedBase.h>

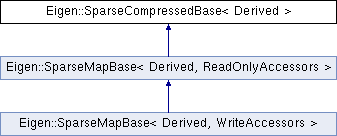

Inheritance diagram for Eigen::SparseCompressedBase< Derived >:

Classes
class	InnerIterator
class	ReverseInnerIterator

Public Types
typedef SparseMatrixBase< Derived >	Base

Public Member Functions
Index	nonZeros () const
const Scalar *	valuePtr () const
Scalar *	valuePtr ()
const StorageIndex *	innerIndexPtr () const
StorageIndex *	innerIndexPtr ()
const StorageIndex *	outerIndexPtr () const
StorageIndex *	outerIndexPtr ()
const StorageIndex *	innerNonZeroPtr () const
StorageIndex *	innerNonZeroPtr ()
bool	isCompressed () const
const Map< const Array< Scalar, Dynamic, 1 > >	coeffs () const
Map< Array< Scalar, Dynamic, 1 > >	coeffs ()
template<typename OtherDerived >
Derived &	operator= (const EigenBase< OtherDerived > &other)
template<typename OtherDerived >
Derived &	operator= (const ReturnByValue< OtherDerived > &other)
template<typename OtherDerived >
Derived &	operator= (const SparseMatrixBase< OtherDerived > &other)
Derived &	operator= (const Derived &other)

Protected Types
typedef Base::IndexVector	IndexVector

Protected Member Functions
Eigen::Map< IndexVector >	innerNonZeros ()
const Eigen::Map< const IndexVector >	innerNonZeros () const
	SparseCompressedBase ()
internal::LowerBoundIndex	lower_bound (Index row, Index col) const

Friends
struct	internal::evaluator< SparseCompressedBase< Derived > >

Detailed Description

template<typename Derived>
class Eigen::SparseCompressedBase< Derived >

Common base class for sparse [compressed]-{row|column}-storage format.

This class defines the common interface for all derived classes implementing the compressed sparse storage format, such as:

• SparseMatrix
• Ref<SparseMatrixType,Options>
• Map<SparseMatrixType>

Constructor & Destructor Documentation

SparseCompressedBase()

template<typename Derived >

Eigen::SparseCompressedBase< Derived >::SparseCompressedBase ( )

inlineprotected

Default constructor. Do nothing.

Member Function Documentation

coeffs() [1/2]

template<typename Derived >

Map<Array<Scalar,Dynamic,1> > Eigen::SparseCompressedBase< Derived >::coeffs ( )

inline

Returns

a read-write view of the stored coefficients as a 1D array expression

Warning

this method is for compressed storage only, and it will trigger an assertion otherwise.

Here is an example:

and the output is:

See also

valuePtr(), isCompressed()

coeffs() [2/2]

template<typename Derived >

const Map<const Array<Scalar,Dynamic,1> > Eigen::SparseCompressedBase< Derived >::coeffs ( ) const

inline

Returns

a read-only view of the stored coefficients as a 1D array expression.

Warning

this method is for compressed storage only, and it will trigger an assertion otherwise.

See also

valuePtr(), isCompressed()

innerIndexPtr() [1/2]

template<typename Derived >

StorageIndex* Eigen::SparseCompressedBase< Derived >::innerIndexPtr ( )

inline

Returns

a non-const pointer to the array of inner indices. This function is aimed at interoperability with other libraries.

See also

valuePtr(), outerIndexPtr()

innerIndexPtr() [2/2]

template<typename Derived >

const StorageIndex* Eigen::SparseCompressedBase< Derived >::innerIndexPtr ( ) const

inline

Returns

a const pointer to the array of inner indices. This function is aimed at interoperability with other libraries.

See also

valuePtr(), outerIndexPtr()

innerNonZeroPtr() [1/2]

template<typename Derived >

StorageIndex* Eigen::SparseCompressedBase< Derived >::innerNonZeroPtr ( )

inline

Returns

a non-const pointer to the array of the number of non zeros of the inner vectors. This function is aimed at interoperability with other libraries.

Warning

it returns the null pointer 0 in compressed mode

innerNonZeroPtr() [2/2]

template<typename Derived >

const StorageIndex* Eigen::SparseCompressedBase< Derived >::innerNonZeroPtr ( ) const

inline

Returns

a const pointer to the array of the number of non zeros of the inner vectors. This function is aimed at interoperability with other libraries.

Warning

it returns the null pointer 0 in compressed mode

isCompressed()

template<typename Derived >

bool Eigen::SparseCompressedBase< Derived >::isCompressed ( ) const

inline

Returns

whether *this is in compressed form.

nonZeros()

template<typename Derived >

Index Eigen::SparseCompressedBase< Derived >::nonZeros ( ) const

inline

Returns

the number of non zero coefficients

outerIndexPtr() [1/2]

template<typename Derived >

StorageIndex* Eigen::SparseCompressedBase< Derived >::outerIndexPtr ( )

inline

Returns

a non-const pointer to the array of the starting positions of the inner vectors. This function is aimed at interoperability with other libraries.

Warning

it returns the null pointer 0 for SparseVector

See also

valuePtr(), innerIndexPtr()

outerIndexPtr() [2/2]

template<typename Derived >

const StorageIndex* Eigen::SparseCompressedBase< Derived >::outerIndexPtr ( ) const

inline

Returns

a const pointer to the array of the starting positions of the inner vectors. This function is aimed at interoperability with other libraries.

Warning

it returns the null pointer 0 for SparseVector

See also

valuePtr(), innerIndexPtr()

valuePtr() [1/2]

template<typename Derived >

Scalar* Eigen::SparseCompressedBase< Derived >::valuePtr ( )

inline

Returns

a non-const pointer to the array of values. This function is aimed at interoperability with other libraries.

See also

innerIndexPtr(), outerIndexPtr()

valuePtr() [2/2]

template<typename Derived >

const Scalar* Eigen::SparseCompressedBase< Derived >::valuePtr ( ) const

inline

Returns

a const pointer to the array of values. This function is aimed at interoperability with other libraries.

See also

innerIndexPtr(), outerIndexPtr()

---

The documentation for this class was generated from the following file:

• SparseCompressedBase.h
